To obtain fresh drinking water,many industries demand our mineral water packaging & Drinking water treatement plants.Various steps are involved in the functioning of the plant which includes purification,rinsing,filling,capping,and addition of coagulation chemical,sterilization of water with oxidants,filtration,further purification and water softening.

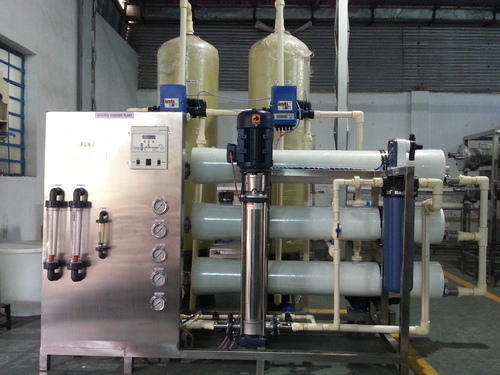

Since our inception,we are manufacturing and exporting of ultra filters and reverse osmosis.It is a process of forcing solvent from a region of high solute concentration through a membrane to a region of low solute concentration with the application of pressure more than the osmotic pressure.The Products can be customized as per the specific requirements of our customers.

We are among the prestigious organizations engaged in manufacturing and supplying quality range of Pressure Booster System. These systems are widely used by the customers where conventional system fails to circulate water. Our professionals monitor the entire production process, in order to develop flawless range of booster systems. A team of quality controllers examine these systems on variegated parameters of quality, before delivering them to the clients. Along with this, we also offer customized range of these booster systems as per the requirement of the customers.

Features:

• Multi Pumps pressure booster system with cyclic pump selection
• Fully auto control panel to watch over system
• Trips pumps in case of no water from source
• Saves electricity
• No need of overhead tanks
• Feel the pressure which you always want

Working principles of these booster systems are mentioned as under:

• While pumping water to the water distribution system, it also enter into pressure tank
• Increases the pressure in the vessel which also increases the distribution pressure and supplies water with equal force threw all tabs and outsources
• Pressure tank and booster pump work simultaneously for proper distribution of water
• Trips automatically when pressure of distribution system reaches up to maximum level (upper set point) and can supply water for 1 to 2 min without any power
• It will measure by pressure sensor and stars pump automatically when the pressure from distribution line falls up to minimum level (lower set point)
• No need of manual intervention

Our Expertise:

• Single pump pressure booster system
• Multi pump pressure booster system
• Fully auto system with pump selection logic
• VFD based systems for constant and steady pressure
• Super control systems with inbuilt HMI /SCADA panels
• No need to watch systems take care of itself

Offering:

• Pumps: Long & Short Coupled Pumps, Single & Double Suction Pumps Vertical Inline Single & Multistage Pump
• Motors: EFF2, EFF1 & Higher Efficient
• Control Panel: Wall & floor mounted panels
• Energy Saving and Efficiency Sustainable Coatings: Glass flake coating on Pumps, Valves, Tanks, and Pipes etc
• Super control systems with inbuilt HMI /SCADA panels
• Accessories: Skid (Suction and Discharge header, NRVs, Isolating Valves, Pressure Switch/ Pressure Transmitter), Pressurized tank, Solenoid valves, Float switches
• Service Backup: 24x7 Service Backup, Energy Audit, O&M Contract, etc

Popular Applications:

• Home, Bungalows & Row houses
• Building automation
• Chemical and refinery industries
• Automobile industries
• Hotels & restaurants
• Commercial Malls and Offices
• Township and Multiplex

Our domain expertize has enabled us to manufacture and supply quality range of Hydro Pneumatic System. Offered range of hydro-pneumatic systems are highly appreciated by the customers for their quality standard and ability to circulate water at any height. These systems are manufactured by the the experts, in accordance with the norms and standards already set by the industry. A team of experts examine these systems on variegated parameters of quality and performance, before the final delivery. We also provide installing and commissioning of these hydro-pneumatic systems at the customers end user in single stroke project.

Following are the principles on which these systems work:

• While pumping water to the water distribution system, it also enter into pressure tank
• Increases the pressure in the vessel which also increases the distribution pressure and supplies water with equal force threw all tabs and outsources
• Pressure tank and booster pump work simultaneously for proper distribution of water
• Trips automatically when pressure of distribution system reaches up to maximum level (upper set point) and can supply water for 1 to 2 min without any power
• It will measure by pressure sensor and stars pump automatically when the pressure from distribution line falls up to minimum level (lower set point)
• No need of manual intervention

Other Details:

• Finds their application in areas like highly populated townships, malls, offices, restaurants and industries where constant water flow must constant with reliable pressure is required
• Suitable for areas where there are no overhead water tanks
• Better than conventional system which fails to provide water at top most floor

We have on offer for our customers a quality-approved range of Water Level Controller, which is used for the purpose of level indication in storage tanks. Technical assistance for installation and maintenance of these products is also provided by us. We make these water level controllers available in different technical specifications.

Features:

• Automatic on/off at required levels in both the tanks
• Dry run protection
• Pump failure Alarm
• Water inlet and pump on/fail indications
• Single phasing preventer
• Starting high voltage spike suppressor

Service Backup:

• 24 X 7 service backup
• Technical assistance
• AMC after warranty period with minimum amount

Industrial Application:

• Panel mounted/DIN rail module
• Used milk, chemical process control
• STP/ETP plants for raw water level acknowledgment
• WTP plants for treated and untreated water level acknowledgment & control

To retain our goodwill in clients' consideration, we manufacture and supply optimum quality Industrial Water Level Controller that helps in conserving power, water and endows pumps. Our offered water level controller is precisely manufactured at our well established manufacturing unit using optimum quality components and cutting edge technology. Moreover, our provided water level controller is delivered after conducting a proper test against it.

Features:

• Optimum functionality
• Easy operability
• Sturdiness

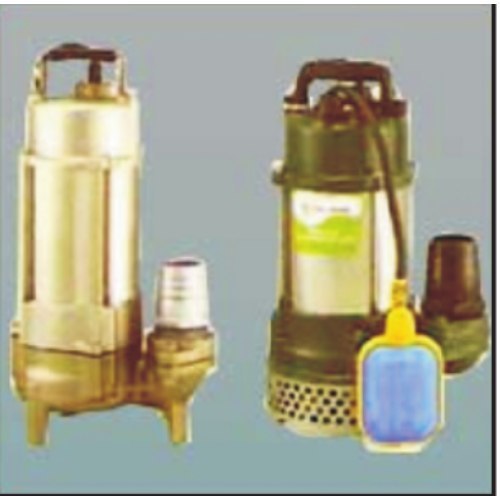

We are engaged in offering to our clients high quality Dewatering Pump. These pumps are duly applicable in various industries like sanitation, irrigation, power and many others. These pumps are highly demanded in the market due to its features like low energy consumption and less noise making.

Features:

• Designed with semi-open impeller
• Can handle solids up to 100 mm
• Float switch for automatic on & off operation
• Motors are with F class insulation and IP 68 protection
• Available in single phase 220V +/-10% with overload
• Protector as well as three phase 415V+/-10%
• Three phase pumps to be installed with control panel
• Having protection like single phase prevent

Range:

• Flow: up to 170 m3 / hr
• Total Head: up to 60 meters
• Liquid temp up to 40 deg c
• Watering pressure up to 6 bar
• Submergence depth up to 5 meters
• Solid size up to 100 mm

Material of Construction:

• Pump casing: CI
• Motor bracket: SS
• Impeller: CI / Aluminum
• Shaft: SS 316 / SS 420 / CS 45
• Mechanical Seal: TC vs Sic /
• Carbon vs. Ceramic

Applications:

• Waste in Hotels, Hospitals
• Drainage water
• Dewatering of trenches
• Dewatering of basement
• Commercial buildings
• Effluent treatment plants

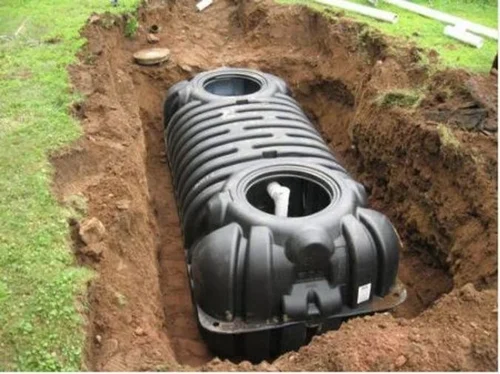

• Septic tank emptying
• Sewage treatment plant
• Raw sewage with fibers
• Waste water in garages
• Service stations

Leveraging on the vast experience of the industry, we are also engaged in manufacturing and supplying quality range of Dewatering with Auto System. These dewatering systems are basically used by the clients for draining the water from the oil tanks. While manufacturing these systems, our professionals strictly follow the established norms and standards of the industry. A team of deft experts, monitors every stage of production, with an aim to develop high quality dewatering systems.

Some of the features of these dewatering systems are mentioned as follows:

• Robust construction
• Longer functional life
• Excellent performance
• Resistance against corrosion & abrasion
• Reliability

Our wide range of Mimic Panel is used for accurate representation of process plants where control panel is used. With the help of these mimic panel it becomes easier to view and control the entire plant from one single place.

Features:

• Easy to install
• Low maintenance
• Pictorial representation helps to understand process easily

Application:

• Process controls
• Chemical Plants
• STP/ETP plants
• Oil and Natural Gas circulation process
• Water Distribution systems
• RMC & cement plants
• Railways
• Petrochemical Plants

With the assistance of a sedulous team of engineers, we have been actively engaged in offering a vast variety of Smart Relay Panel to the clients. The panels we deal in are designed at par with the defined industry standards and guidelines, making use of high-grade metals and other components. Moreover, prior to dispatch, our professionals test these products on varied parameters so as to gauge their efficient functioning at clients' end.

Features:

• Compact design
• Robust construction
• Corrosion & abrasion resistance
• Longer serviceability

We are among the reputed organizations engaged in manufacturing and supplying superior quality SCADA Panel. All these panels are widely used in every huge and complex process for report generation and monitoring. These panels are developed at our sound manufacturing unit, in accordance with the established norms and standards of the industry. While manufacturing all these panels, our experienced professionals make sure to use latest technology and high-grade material & components. In addition to this, our experts stringently test these panels on various quality parameters, before delivering them to the patrons.

Features:

• SCADA panel is supervisory controller
• Password protected and can be encrypt for selected authorities
• Reliable to use and user friendly
• Password protection can be given
• Report generation in excel, PDF, crystal format
• Also available in custom-built range

Application Areas:

• Oil and gas corporations
• Chemical and aromatic industries
• Process control industries
• Construction industries
